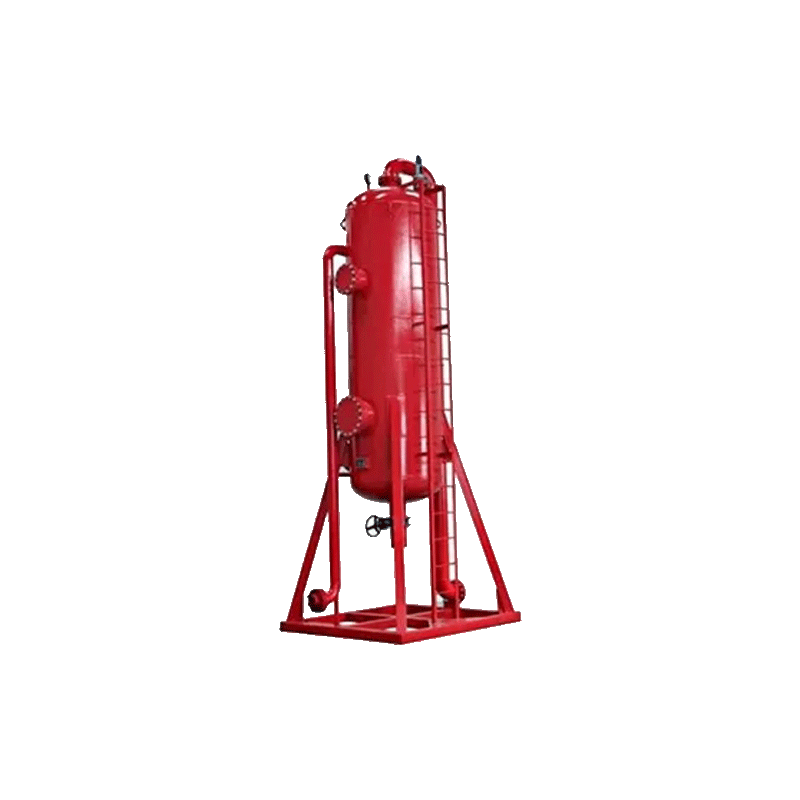

JYQ Series Liquid－gas Separator

Category Solid Control

Parameter of JYQ Series Liquid－gas Separator

Liquid－gas separator of drilling liquid is solids control equipment used to provide pre-degassing to gas cut drilling liquid. It is mainly used to clear away big bubbles of φ3 －φ25mm. The liquid gas separator adopts bottom-sealing structure.
It features simple structure, reasonable flow, big disposal capacity, high degassing efficiency, convenient transportation, installation and service, etc.

1.0 MPa

Model	JYQ-800-1	JYQ-1000-1	JYQ-1200-1
mm Diameter of the shell	800	1000	1200
m3/h Discharge capacity	260	300	320
mm Feeding pipe	150	150	150
mm Mud discharge pipe	250	250	250
mm Gas discharge pipe	200	200	200
MPa Working pressure	1	1	1
kg Weight	2100	2800	3200
mm Overall dimensions	1600×1600×5762	2000×2000×6500	2200×2200×6500

1.6MPa

Model	JYQ-1000-1.6	JYQ-1200-1.6
mm Diameter of the shell	1000mm	1200 mm
m3/h Discharge capacity	300 m3/h	320 m3/h
mm Feeding pipe	150	150
mm Mud discharge pipe	250	250
mm Gas discharge pipe	200	200
MPa Working pressure	1.6	1.6
kg Weight	8000kg	9000kg
mm Overall dimensions	2200×2200×6500	2200×2200×6500

Model	JYQ-1000-4	JYQ-1200-4
mm Diameter of the shell	1000	1200
m3/h Discharge capacity	300	320
mm Feeding pipe	150	150
mm Mud discharge pipe	250	250
mm Gas discharge pipe	200	200
MPa Working pressure	4	4
kg Weight	8000	9500
mm Overall dimensions	2300×2300×6500	2300×2300×6500
