KILL MANIFOLD

1. Application

In case of increase of the well head pressure, the kill manifold can provide a means of pumping heavy drilling fluid into the well to balance bottom hole pressure so that well kick and blowout can be pressure also can be released directly through blowdown lines connected to kill manifold so as to release bottom hole pressure, or the water and extinguishing agent can be injected into the well using the kill injection of kill fluid or other fluids into the well bore through themselves, but do not allow any backflow so as to perform the kill operation or other operations.

2. Configuration

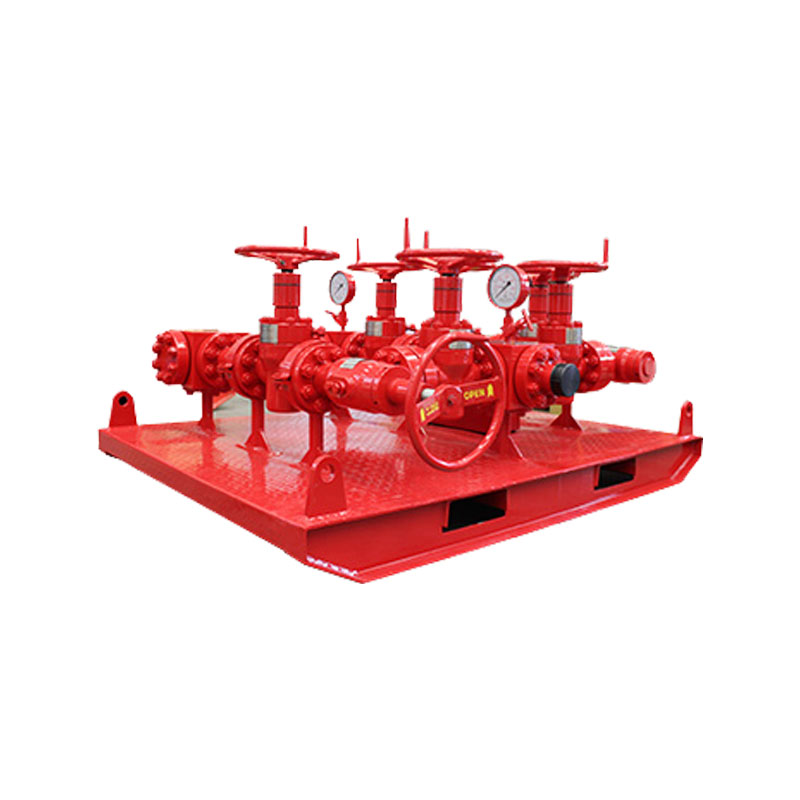

The kill manifold consists of check valves, gate valves, pressure gauges and line pipes. The one end of the kill manifold is connected to the drilling spool and other end is connected to the pump. The kill manifold and choke manifold are both designed to API 16C and can be used together . The kill manifold is available in pressure ratings of 2000PSI, 3000PSI, 5000PSI, 10000PSI.
