Power Unit

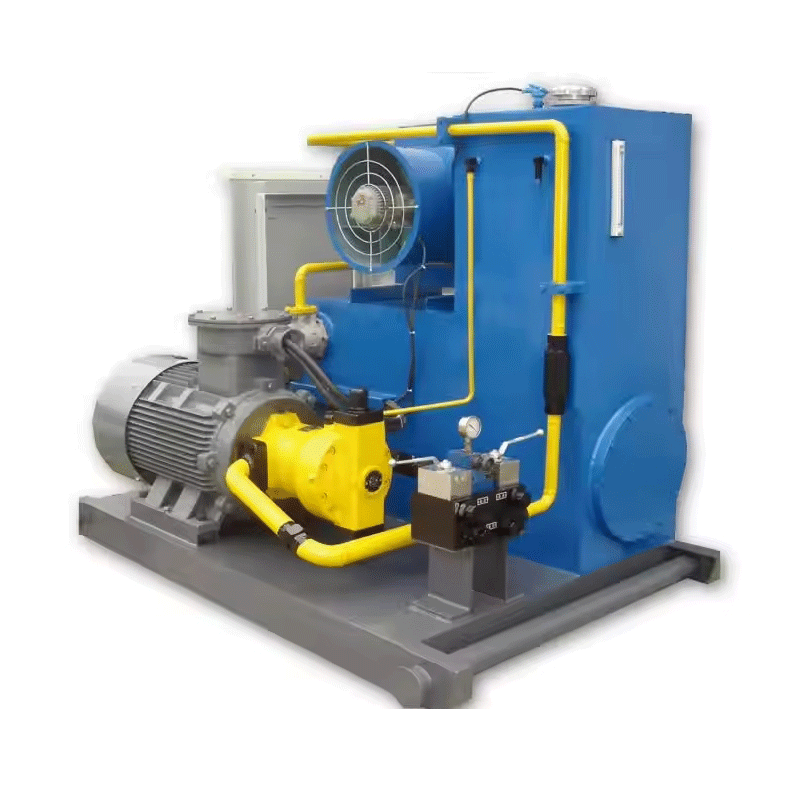

The hydraulic power unit supplies hydraulic power for drill equipments. Small structure, easy operation and wide adaptability are the features of this series power uint.
Parameter of Power Unit
Characteristics：
The hydraulic power unit supplies hydraulic power for drill equipments. Small structure, easy operation and wide adaptability are the features of this series power uint.
The option for customer(please specify before purchase):
Driven power:1. Explosion-proof electric motor 2.Common electric motor3, Diesel Cooling typel:1. None 2. Air cooled 3.Water cooled.
Heating typel:1.None 2. Electric.
|
Model |
YD160-1/2 |
YD120 |
|
Max working pressure |
20 MPa 2900 PSI |
20 MPa 2900 PSI |
|
Rated flow |
160 LPM 42 GPM |
120 LPM 32 GPM |
|
Effective volume |
587 L 155 gal |
400 L 105 gal |
|
Drive power |
37 kw 50.3 hp |
22 kw 29.5 hp |
|
Dimension: L×W×H |
1700×1250×1240 68″×49.2″×48.8″ |
1350×1100×1100 53.1″×43.3″×43.3″ |
|
Weight |
1100 kg 2426 lbs |
1000 kg 2200 lbs |
