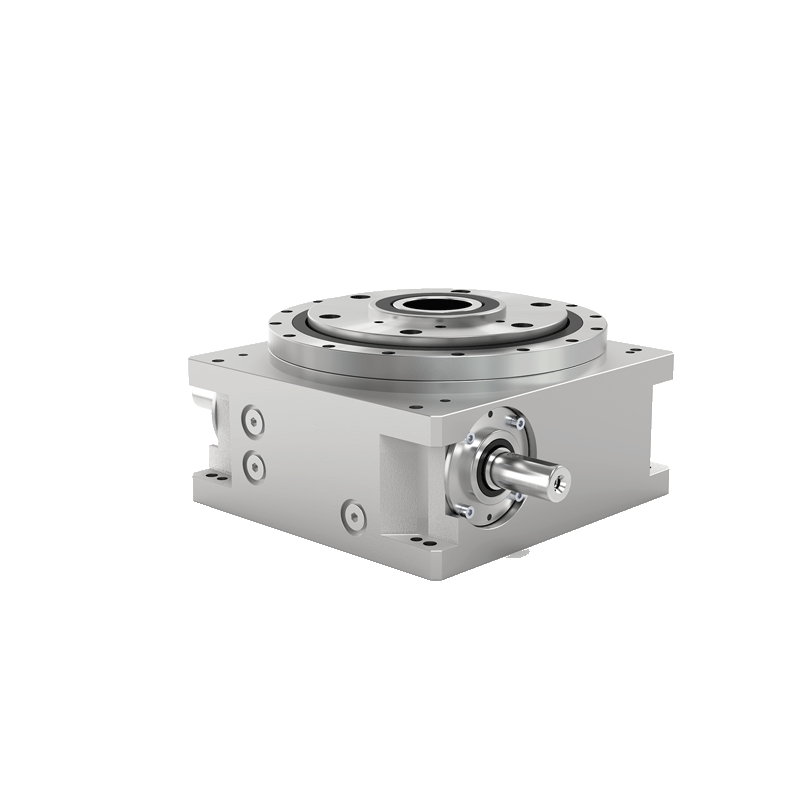

ROTARY TABLE
It is available in manual or CNC. It can even be purchased with a controller to be used as a programmable indexer. It’s popular among industrial shops due to its compact size, solid construction, and long-lasting accuracy.
Parameter of ROTARY TABLE
It is available in manual or CNC. It can even be purchased with a controller to be used as a programmable indexer. It’s popular among industrial shops due to its compact size, solid construction, and long-lasting accuracy.
The rotary table also is available with larger, 15/32″ through hole to which you cab mount our chucks. This modification came about after requests from our laser engraving customers. The larger through hole allows for larger stock to be held. It also has a Nickel-Teflon plating on it because it was designed to be used in an every-day production environment. This gives the table a rust resistant surface that is hard and has added lubrication qualities.
1、The rotary table is designed and manufactured in accordance with API17K and other related technical standards.
2、The rotary table has a good loading capacity with stable rotation.
3、The rotary table can be lubricated well and locked safely, and is convenient for maintenance.
| Model
Parameter |
E704 | ZP1-90 | ZP135 | ZP175 | ZP205 | ZP275 |
| Dia of thr hole (in) | 7 | 101/8 | 131/2 | 444.5(17-1/2”) | 520(20-1/2”) | 698.5(27-1/2”) |
| Max static load(lbs) | 130000 | 200000 | 300000 | 500000 | 700000 | 1000000 |
| Rated torque(ft.lbs) | 7300 | 8100 | 8800 | 10200 | 16500 | 20200 |
| Centerline distance
Between rotary table and Chain wheel teeth (in) |
231/4 (To the center of two chain wheels) | 473/8 (The center distance from flange end to rotary table) | 44 | 443/4 | 531/4 | 531/4 |
| Max speed (r/min) | 300 | 300 | 350 | 300 | 300 | 250 |
| Driving ratio of gear | 2.94 | 3.38 | 3.5 | 3.58 | 3.22 | 3.67 |
| Overall dimension (in) | 37×23×21 | 71×39×20 | 68×35×15 | 76×50×23 | 90×452×26 | 95×66×27 |
| Weight(lbs) | 1171 | 3713 | 2734 | 8576 | 12192 | 14932 |
