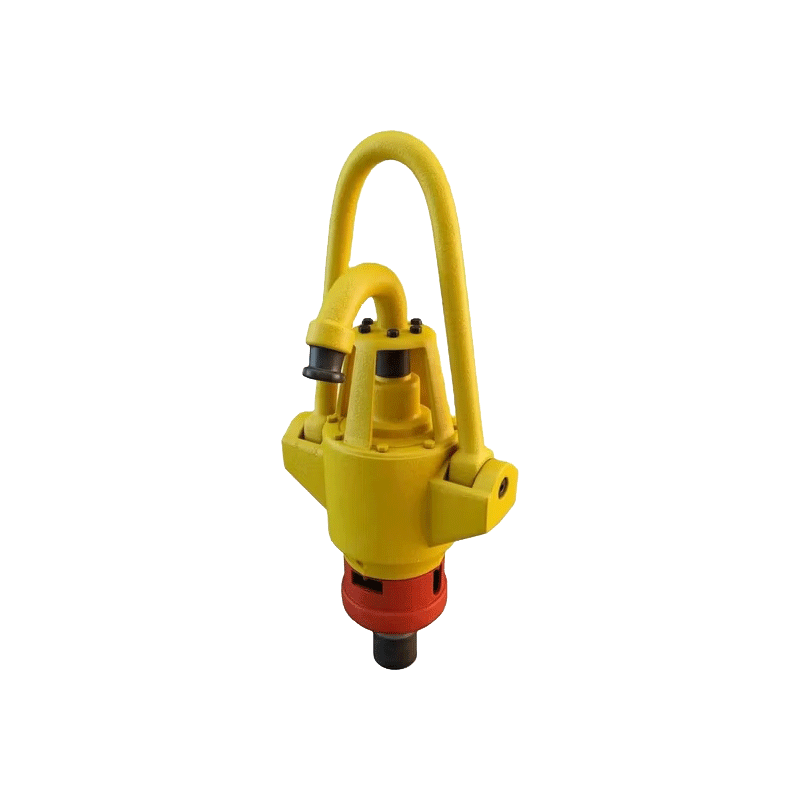

SWIVEL
The meaning of SWIVEL is a device joining two parts so that one or both can pivot freely (as on a bolt or pin).
A swivel is a connection that allows the connected object, such as a gun, chair, swivel caster, or an anchor rode to rotate horizontally or vertically.
Parameter of SWIVEL
The meaning of SWIVEL is a device joining two parts so that one or both can pivot freely (as on a bolt or pin).
A swivel is a connection that allows the connected object, such as a gun, chair, swivel caster, or an anchor rode to rotate horizontally or vertically.
1、 The swivel is designed and manufactured in accordance with API Spec 8C、SY5210 and other related technical standards
2、 The loaded parts are made of good-quality allty steel.
3、 The flushing pipes and packing can be dismantled easily for replacement by design of a portable packing unit.
| Model | SL70 | SL110 | SL135 | SL160 | SL225 |
| Max static loads (lbs) | 151000 | 252000 | 300000 | 359000 | 337000 |
| The working load of the
Main bearing 100r/min (lbs) |
67000 | 101000 | 224000 | 269000 | 337000 |
| The centerline and verticalline
Inclination of the gooseneck pipe |
15° | 15° | 15° | 15° | 15° |
| Thread of the gooseneck pipe | 23/8 “TBG | 41/2“DB | 41/2 “TBG | 41/2“TBG | 41/2 “TBG |
| Thread of the lower end of the connection | 31/2 “REGLH | 41/2 “REGLH | 65/8 “REGLH | 65/8 “REGLH | 65/8 “REGLH |
| Max working pressure （psi） | 2100 | 3000 | 3000 | 5000 | 5000 |
| Diameter of the center pipe (in) | 2 | 21/2 | 3 | 3 | 3 |
| Overall dimension (in) | 67×18×12 | 64×11×20 | 89×27×29 | 95×27×28 | 102×31×26 |
| Weight (lbs) | 600 | 740 | 2100 | 2200 | 2900 |
